See how we solve challenging sheet metal applications with custom tooling — from special bending and punching solutions to unique tooling designed around the part.

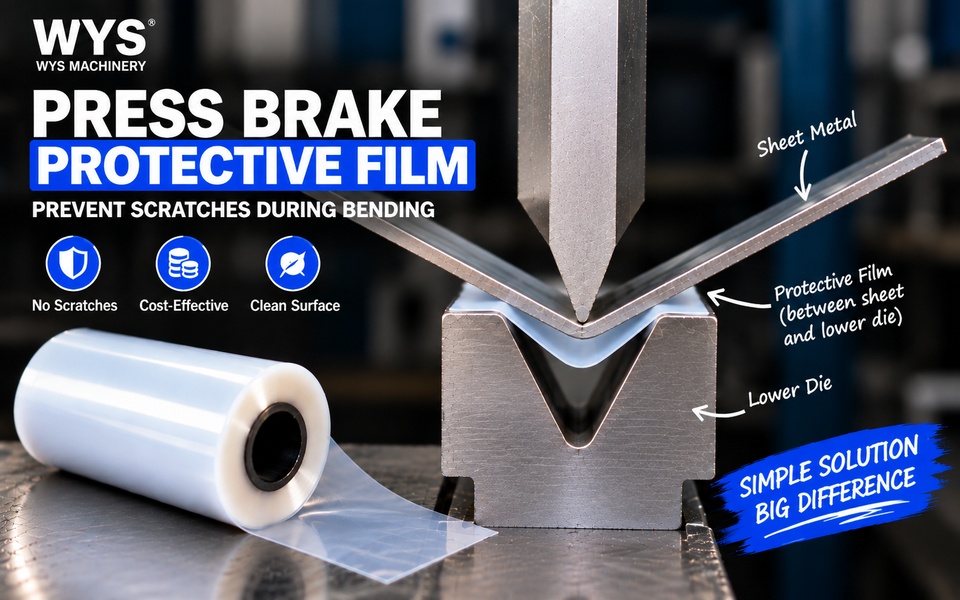

This video demonstrates how press brake protective film helps prevent scratches and tooling marks during sheet metal bending. Placed between the workpiece and lower die, the film provides a simple, flexible and cost-effective solution for protecting surface-sensitive sheet metal parts.

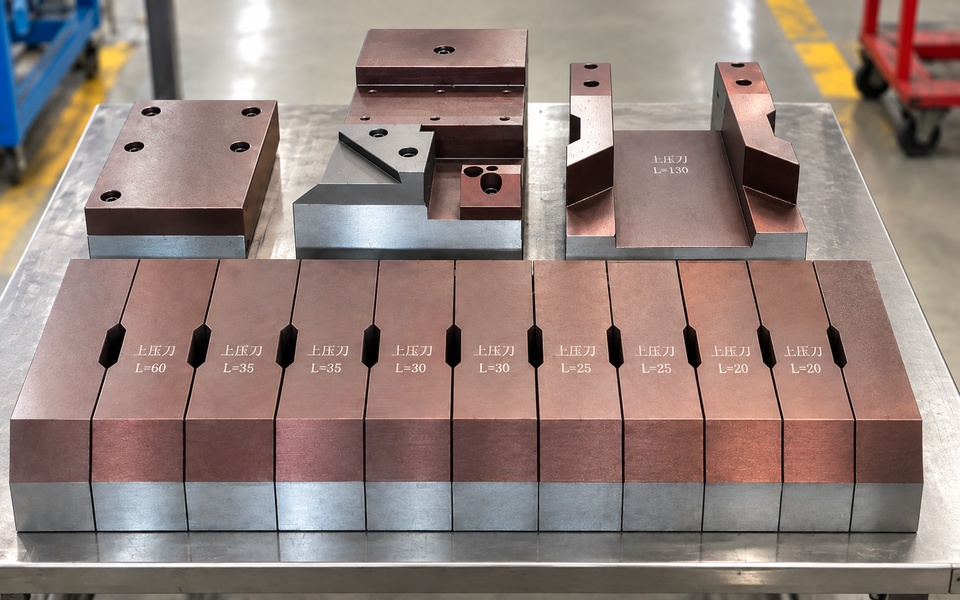

This video shows custom Panel Bender Tooling manufactured by WYS Machinery. We produce different tooling profiles, sizes and configurations according to customer drawings, with precision machining solutions for the demanding geometry, hardness and mounting features required in panel bending applications.

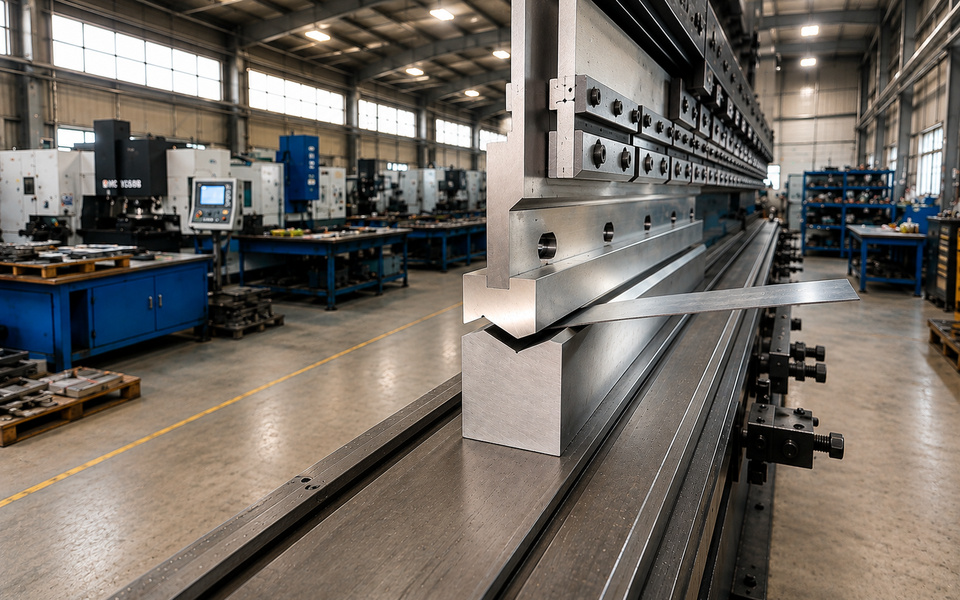

This video demonstrates a modular press brake offset tooling system with a reusable punch holder and replaceable offset inserts. By changing the upper insert and matching lower die, different offset heights and Z-bend dimensions can be formed without purchasing a complete tooling set for every profile, helping reduce tooling investment and simplify changeovers.

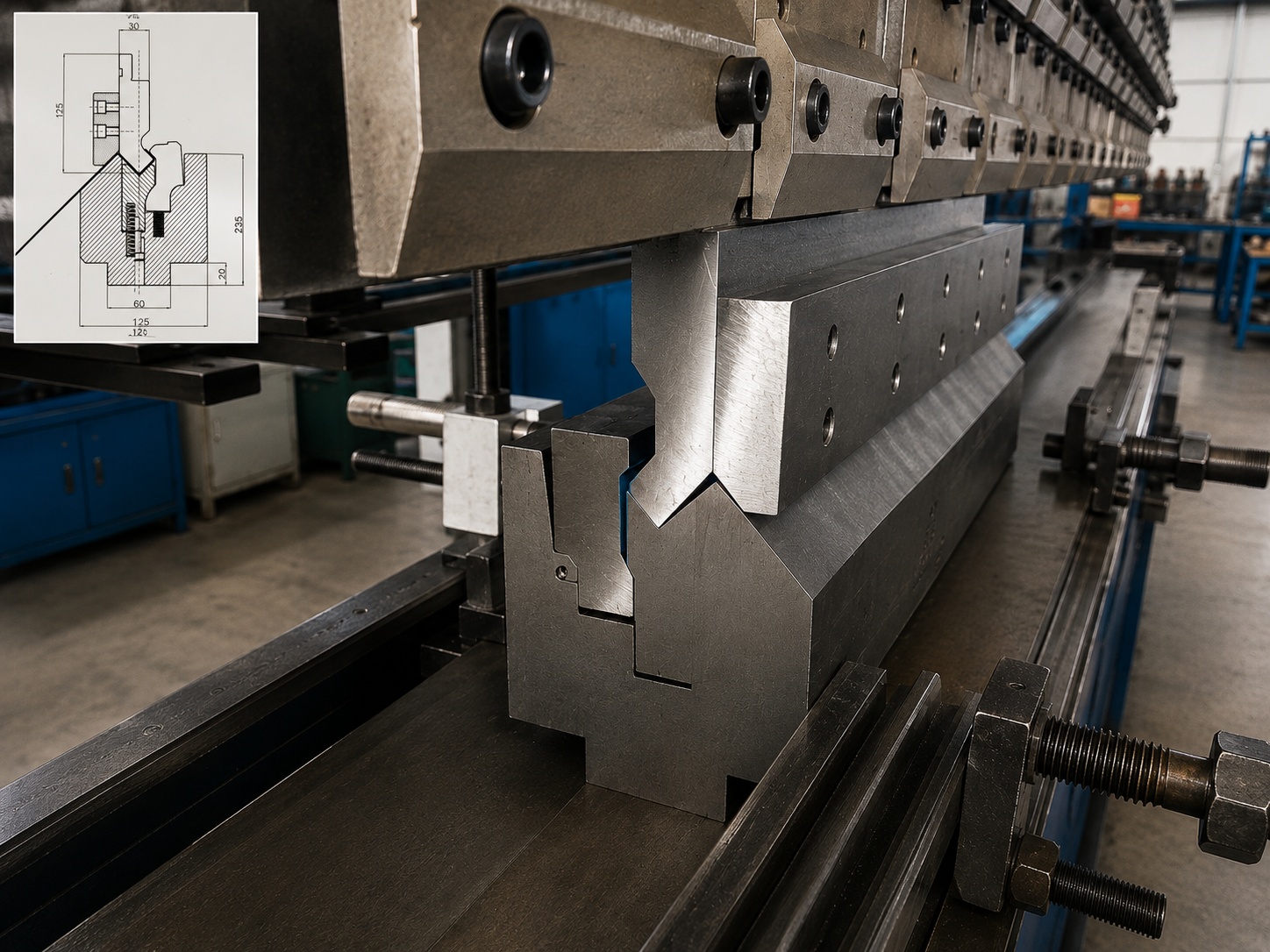

This custom press brake tooling forms three 90-degree bends in a single stroke, replacing multiple conventional bending operations with one integrated forming process. The solution improves dimensional consistency between the three bends while reducing workpiece repositioning, handling and production time.

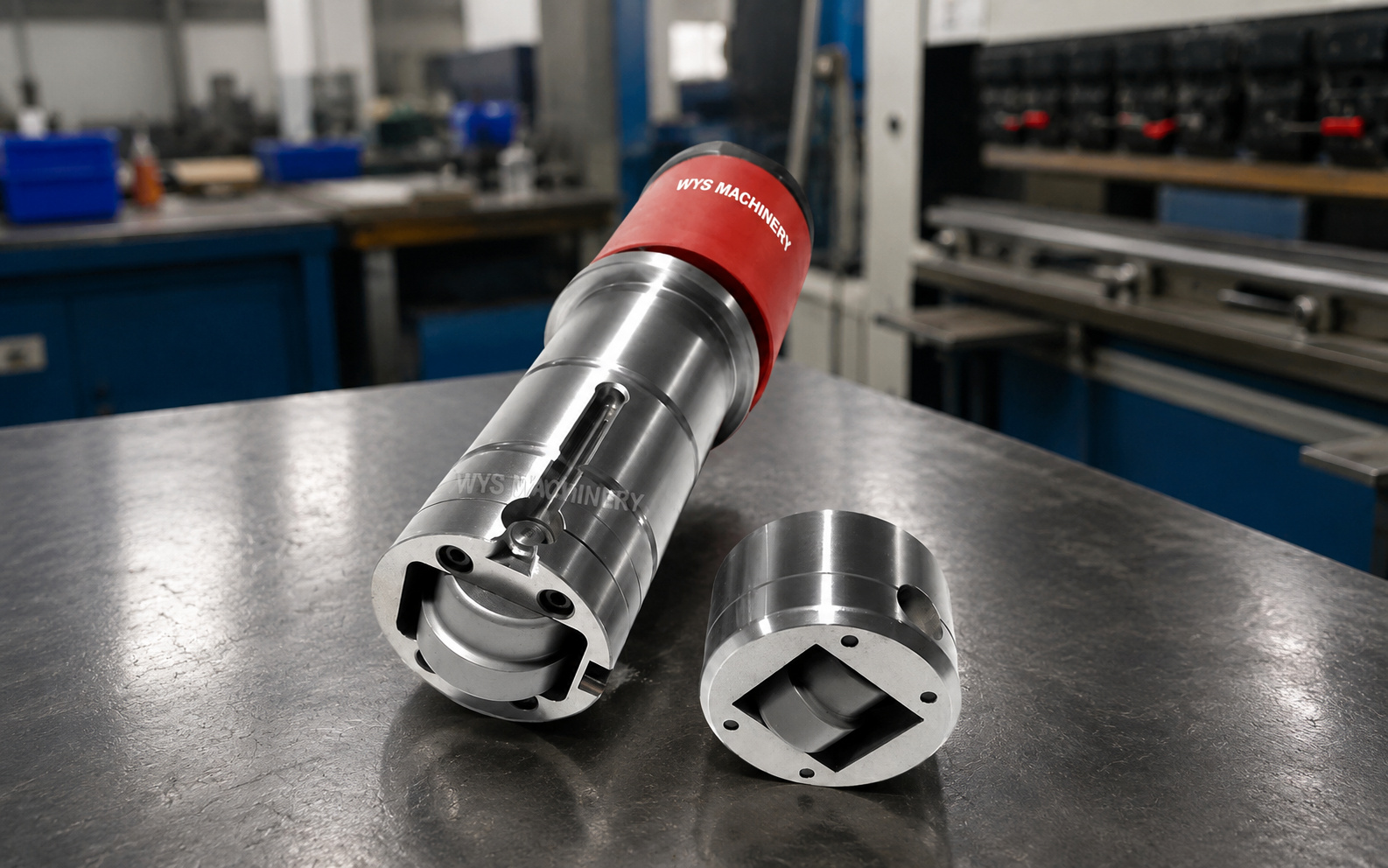

This video demonstrates a thick turret Rolling Offset Tool designed to create continuous offset or stepped forms directly on a CNC turret punch press. Unlike a Rolling Rib Tool, which forms reinforcing beads or ribs, the Rolling Offset Tool creates a controlled height transition in the sheet and can significantly reduce secondary press brake operations.

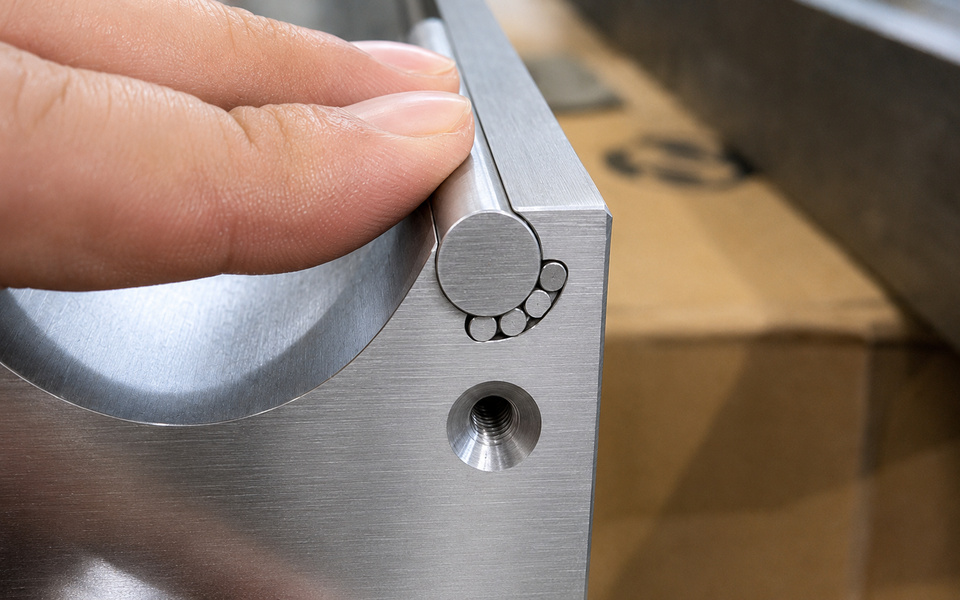

This video demonstrates a custom radius bending die with rollers installed on both sides of the die opening. The rollers reduce sliding friction between the sheet and tooling during forming, helping minimize surface scratches and marking, especially when bending thick plate and surface-sensitive components.

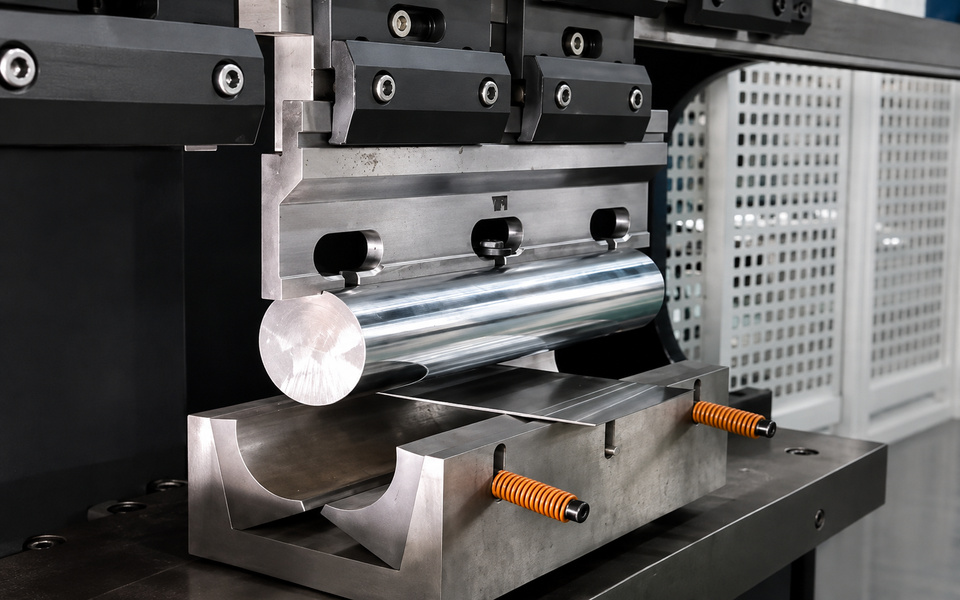

This video demonstrates custom press brake tooling for high-precision U-shaped forming in a single stroke. The tool design compensates for sheet metal springback, helping achieve accurate sidewall angles and consistent U-profiles without multiple conventional bending steps.

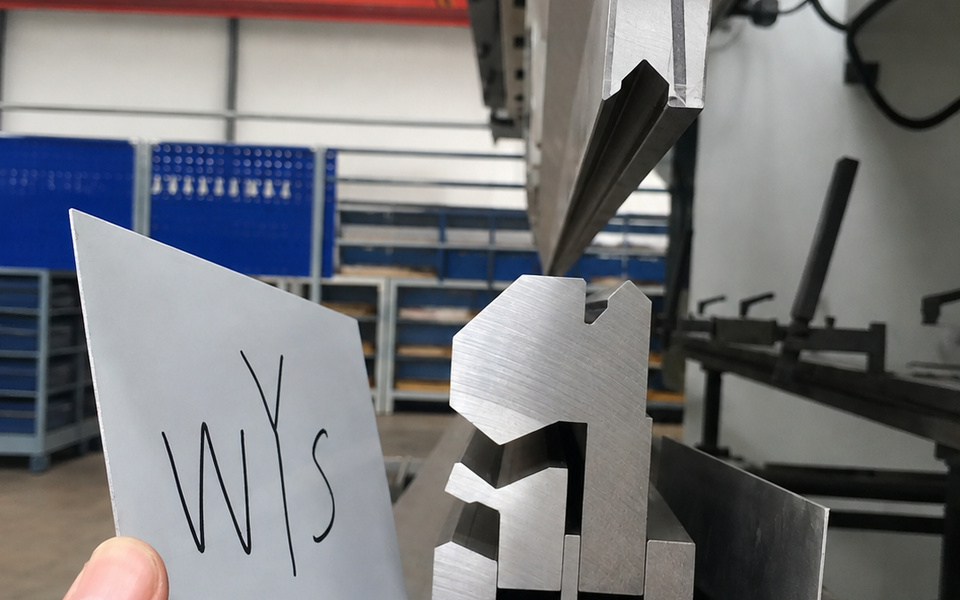

This video demonstrates a custom multi-stage forming tool developed for door panel production. The sheet is first formed on the upper section of the lower die and then transferred to the side forming position, where two areas are formed simultaneously. The process requires high tooling accuracy, structural strength and reliable part stripping.

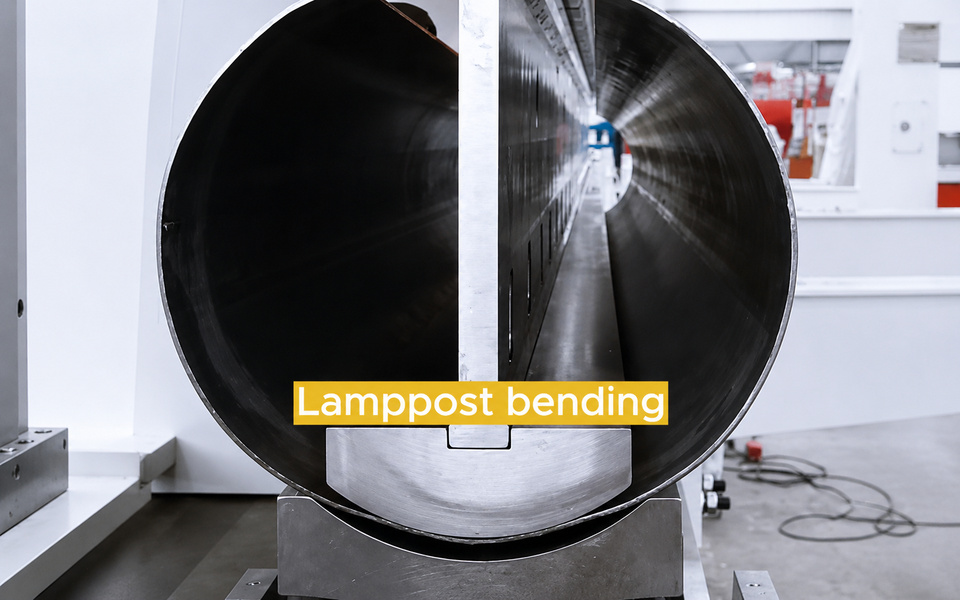

This video shows a custom press brake tooling solution for bending long tapered street light poles. The tooling is manufactured with controlled taper and long-length accuracy to match the changing cross-section of the pole, and can be used with tandem press brakes for extra-long pole forming applications.
