Explore real-world sheet metal forming applications — from complex bending and punching challenges to custom tooling solutions developed for unique parts and production needs.

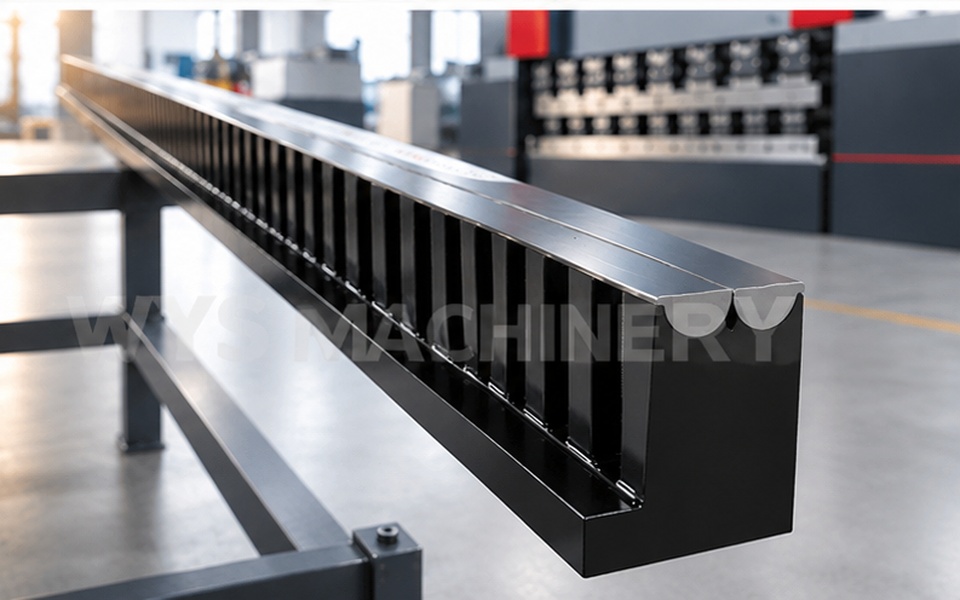

A 2000 mm one-piece V24 Rolla-V press brake tool for mark-free bending of 3 mm sheet metal. Precision machining and stress-relief treatment help maintain straightness and dimensional stability across the full tooling length.

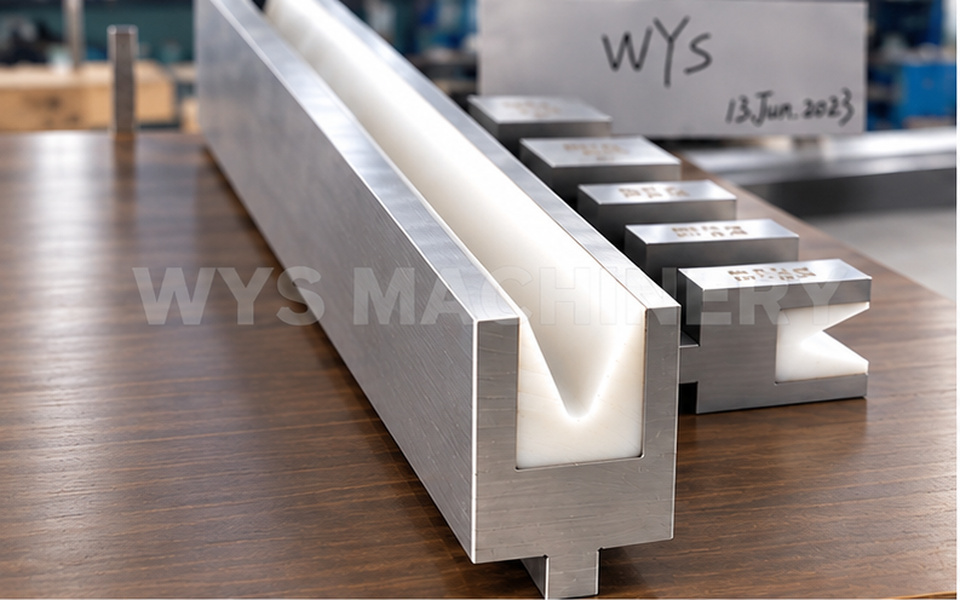

A 30° V18 press brake die with a replaceable nylon insert for mark-free thin sheet bending. The nylon contact surface prevents scratches during forming while offering a cost-effective surface protection solution.

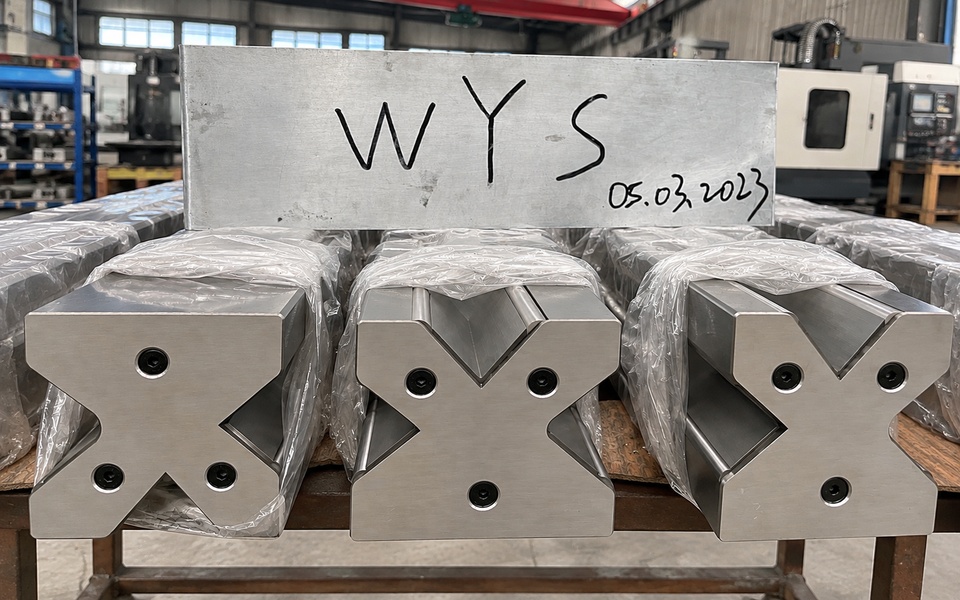

A multi-V press brake die with rollers at each V-opening to reduce sliding friction and sheet surface scratches during bending. The roller structure is also suitable for heavy plate bending, helping reduce die wear and extend tooling service life.

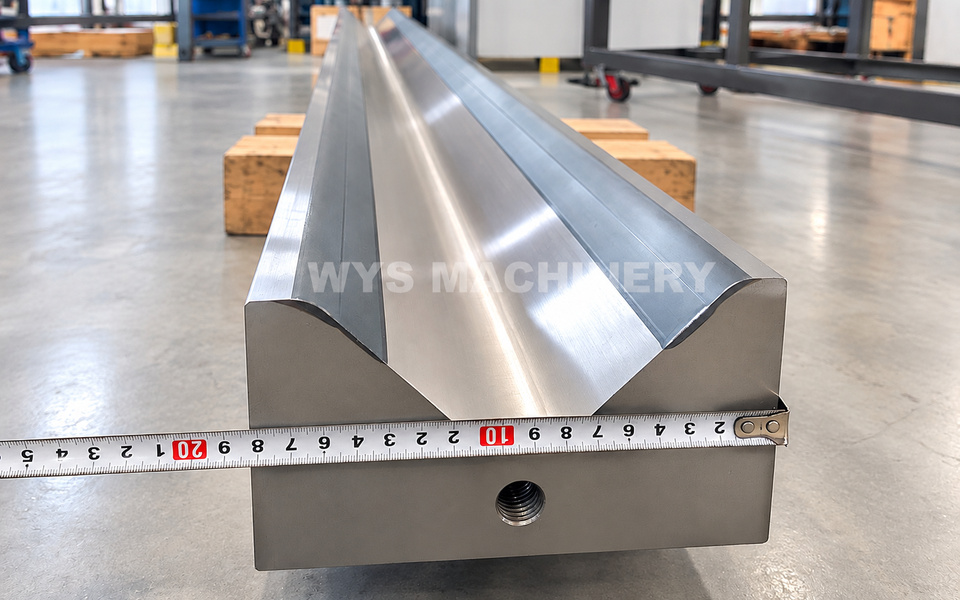

A V160 press brake lower die with laser-hardened working surfaces reaching HRC 54±2. Designed for demanding heavy plate bending, the hardened surface improves wear resistance and helps extend tooling service life.

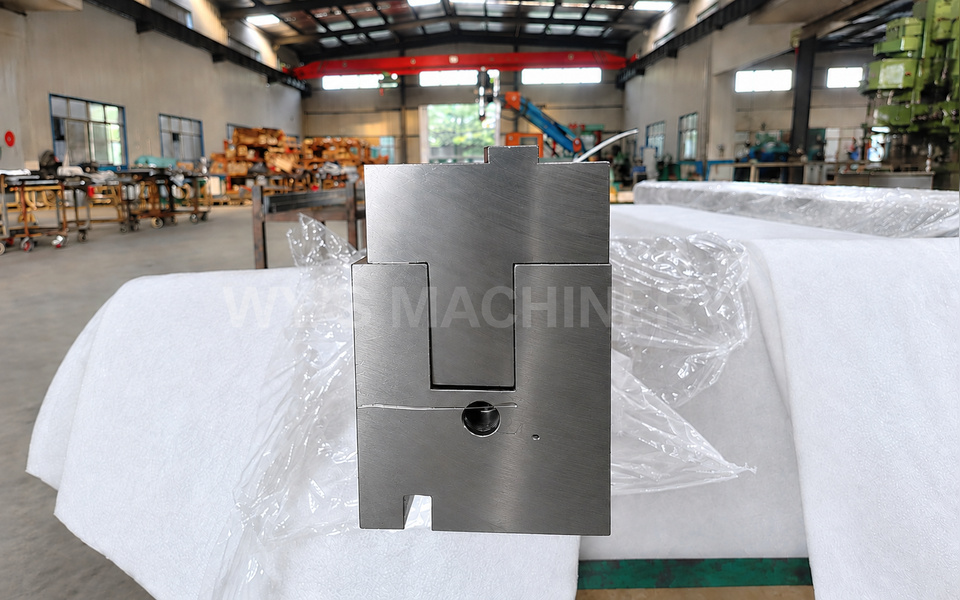

A pneumatic press brake hemming die designed for applications requiring higher dimensional accuracy. Pneumatic control minimizes lateral movement of the moving die section, providing more precise and consistent flattening than conventional spring-loaded structures.

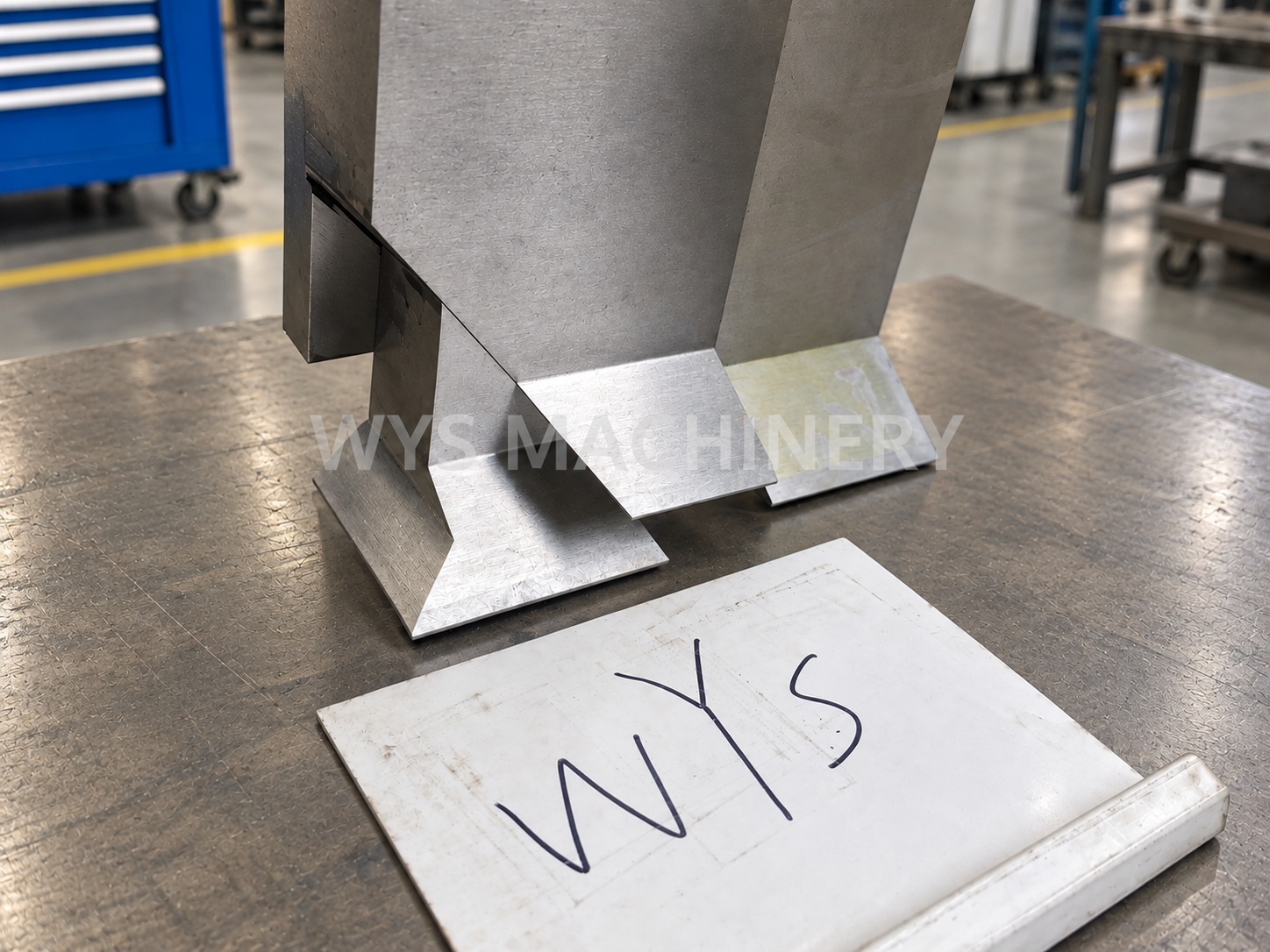

A special panel bending solution using a swing ear tool to provide clearance for inward and return flanges, preventing the formed sheet from interfering with the upper tooling during box bending.

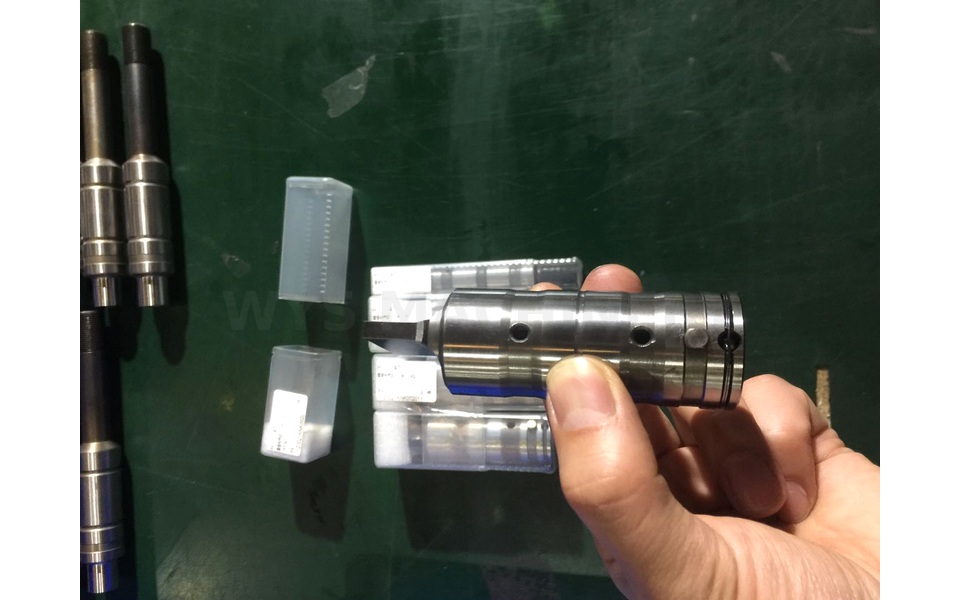

Air blow turret punch tooling compatible with Wilson 90 Series systems, designed to help control slug carry-up, protect sheet surfaces and support reliable high-speed punching. Punches, dies and complete tooling sets are available.

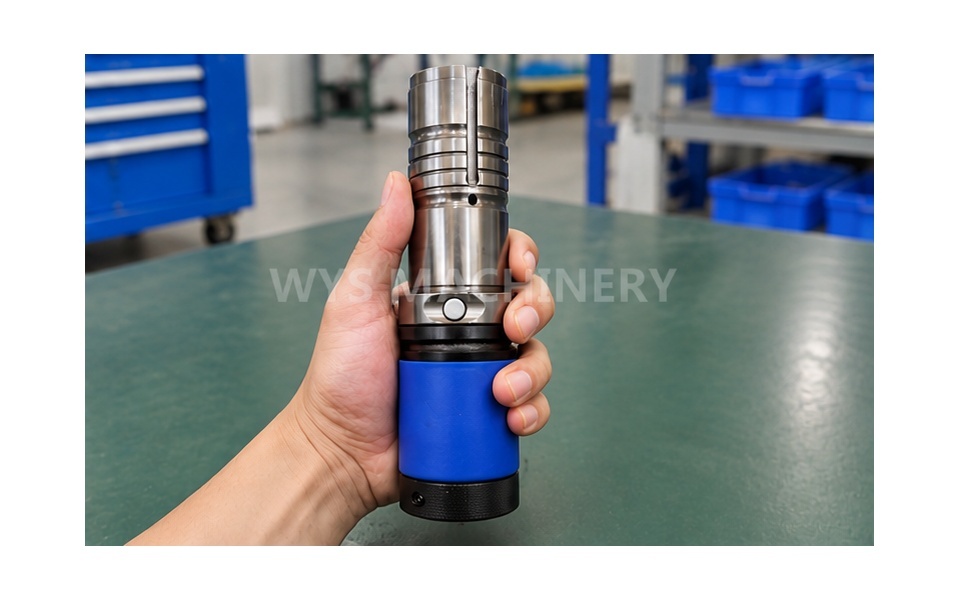

Ultra thick turret tooling allows quick punch length adjustment without removing the tool for conventional manual setup. Press the adjustment button and rotate the guide to compensate for punch length after regrinding, reducing setup time and improving punching efficiency.

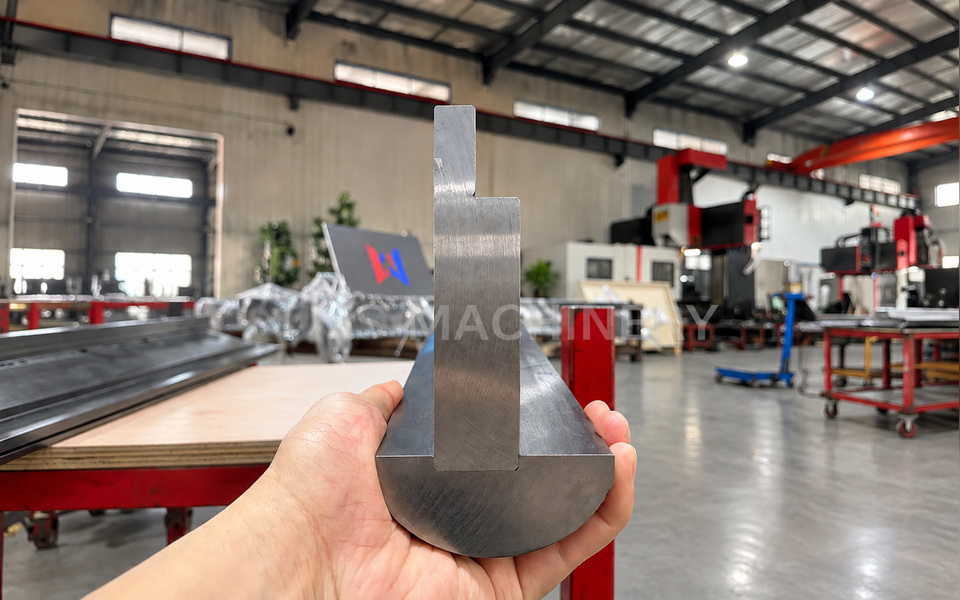

An R60 split-type press brake radius tool combining a reusable Punch Holder with a Replaceable Radius Insert. Different radius inserts can share the same holder, reducing tooling cost and improving utilization for multi-radius bending.

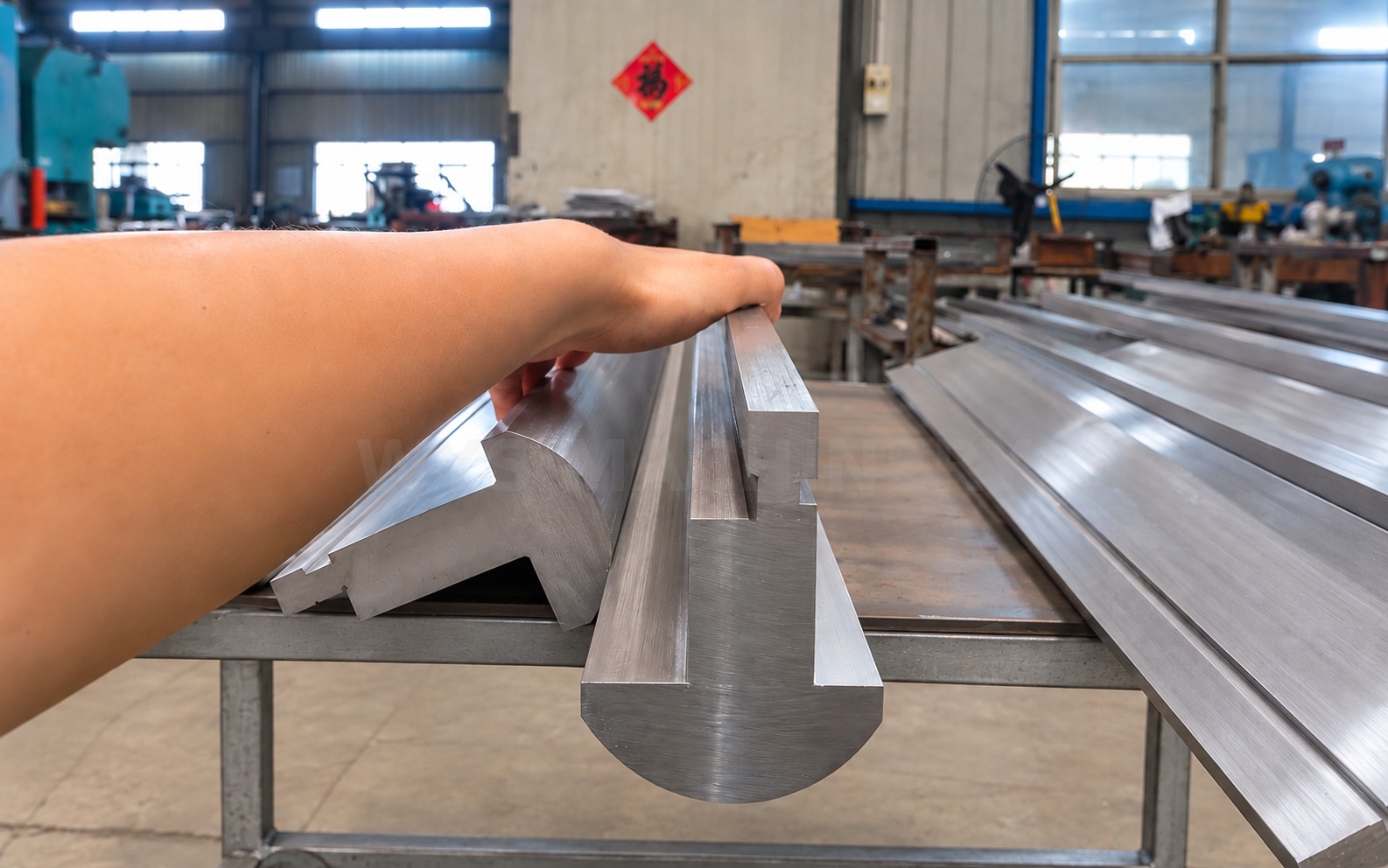

An R80 one-piece press brake radius tool engineered for large-radius bending. Tool geometry is designed according to the required workpiece radius, material and springback behavior to achieve the intended final profile.
A custom swing ear press brake punch designed for bending boxes, pans and enclosed sheet metal parts with inward return flanges. Movable ear sections provide the clearance needed to release the finished workpiece after bending.
A custom spring-loaded hemming tool for press brake applications, designed for sheet metal pre-bending and flattening. V-opening, die angle, tooling structure and working length can be customized to specific bending requirements.

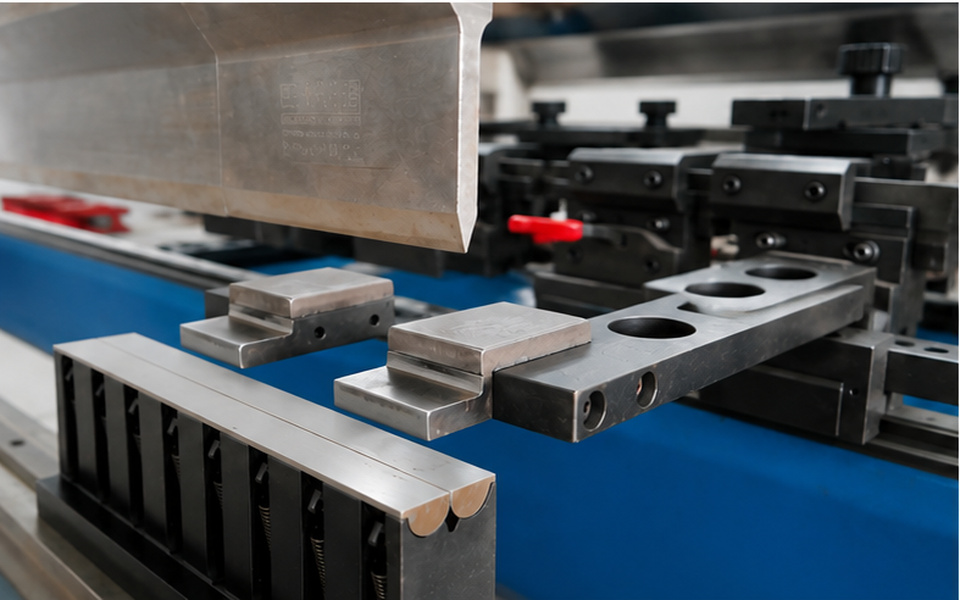

A Rolla-V press brake tooling solution designed to minimize bending marks, scratches and surface damage on sheet metal. Custom V-openings, tool heights and mounting configurations are available for different press brake applications.

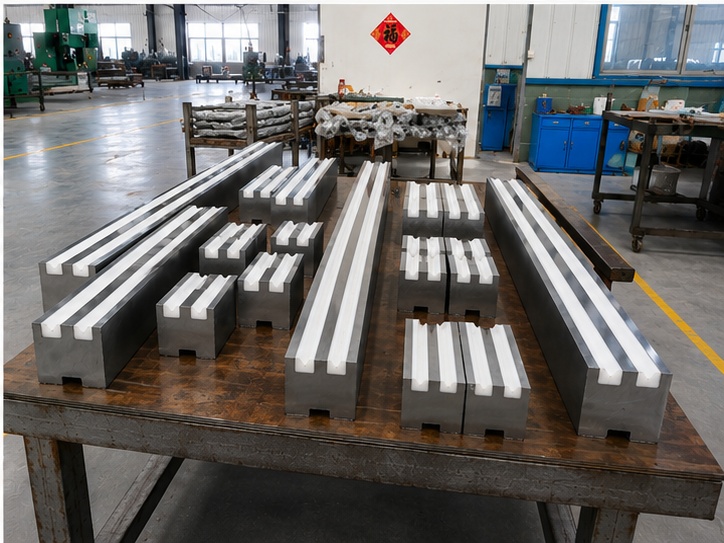

A cost-effective polyurethane mark-free press brake die solution designed to reduce bending marks and scratches on surface-sensitive sheet metal, especially suitable for small-batch and lower-volume bending applications.
