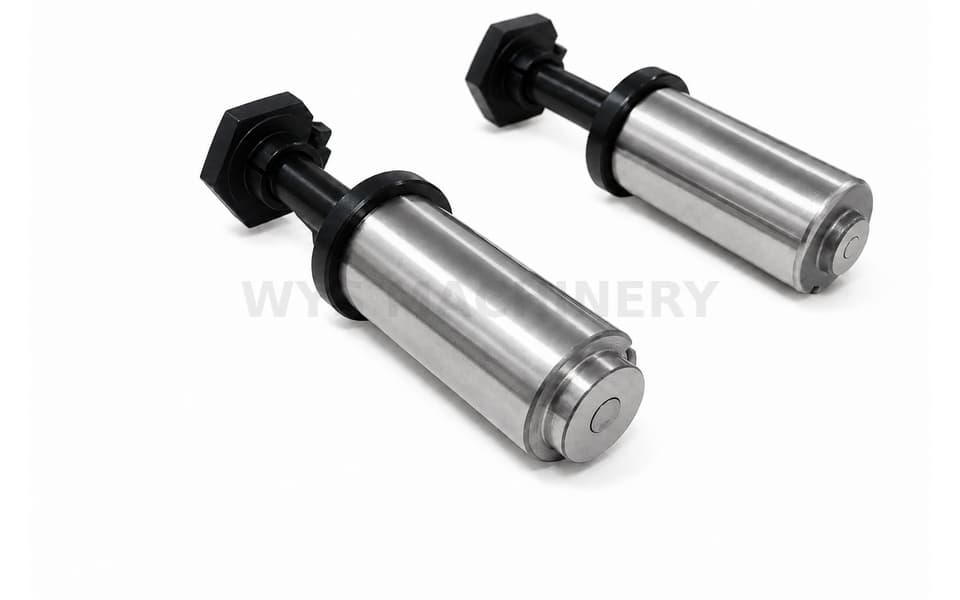

The WYS Machinery B Station Thick Turret Custom Logo Embossing Tool is a special marking and shallow forming tool developed to create a fixed logo, symbol or identification profile directly in sheet metal.

The photographed tool consists of a matching upper-tool and lower-die assembly. The two working faces contain corresponding male and female profiles. During the programmed punch press stroke, the sheet is pressed between these matched profiles, causing localized material displacement and producing the required raised or recessed mark.

Unlike an ordinary punching tool, the custom logo embossing tool does not normally cut through the sheet or create a conventional slug. The mark becomes a permanent physical part of the workpiece.

The tool can be customized for:

Company logos
Product-brand marks
Simple graphic symbols
Direction arrows
Orientation marks
Inspection symbols
Assembly marks
Electrical symbols
Safety or warning symbols
Part-identification marks
Quality-control marks
Customer-specific graphic profiles

Not every customer requires a company logo. Some applications only require a fixed symbol, simple graphic, orientation indicator or production mark. For this reason, the product is also described as a Custom Symbol Embossing Tool and Custom Identification Marking Tool.

The photographed product uses a B Station thick turret structure. The B Station provides sufficient space for many compact logo and symbol profiles, but the final design must remain within the station’s dimensional and forming-force capacity.

If the requested mark is too large or contains excessive detail, a larger station, simplified artwork, engraving tool, dot-matrix marking system or alternative marking process may be more suitable.

WYS Machinery can customize the graphic profile, overall mark size, line width, embossing depth, raised or recessed direction, visible side and tooling structure according to the customer’s requirements.

In addition to thick turret tooling, WYS Machinery can manufacture compatible custom logo, symbol and identification marking tools for TRUMPF Type and Murata Wiedemann Type punching systems.

These products are compatible replacement tools manufactured by WYS Machinery. References to TRUMPF and Murata Wiedemann describe the applicable tooling systems and do not imply original manufacture, authorization or official affiliation.

Key Features

B Station thick turret tooling configuration
Custom logo and symbol embossing
Permanent physical marking on sheet metal
Raised or recessed marking available
Does not normally punch through the sheet
No conventional punching slug
Matching male and female working profiles
Custom mark size and geometry
Custom line width and embossing depth
Suitable for logos, symbols and identification marks
Can reduce labels, ink marking or separate stamping operations
Repeatable CNC-programmed mark position
Suitable for high-repeatability batch production
Top-side or bottom-side marking options
Material-specific forming geometry
Custom manufacturing from vector artwork or drawings
Thick turret, TRUMPF Type and Murata Wiedemann Type options
Replacement working components available according to design
Free artwork review and tooling design support
Compatible replacement tooling manufactured by WYS Machinery

Technical Specifications

Specification	Details
Product Category	Punch Press Marking and Embossing Tool
Product Type	Custom Logo Embossing Tool
Alternative Terms	Custom Symbol Embossing Tool / Logo Marking Tool / Identification Marking Tool
Tooling System Shown	Thick Turret Tooling
Station Shown	B Station
Mark Type	Fixed Logo, Symbol, Graphic or Identification Mark
Forming Result	Raised or Recessed
Processing Method	Matched-Profile Embossing
Through-Hole	No
Conventional Slug	No
Supply Configuration	Matching Upper Tool and Lower Die
Logo or Symbol Size	Customized
Embossing Depth	Customized
Line Width	Customized According to Artwork and Material
Marking Direction	Top or Bottom According to Application
Sheet Material	Confirmed According to Application
Sheet Thickness	Confirmed Before Tool Design
Tool Material	Selected According to Application
Heat Treatment	Selected According to Tool Material and Working Conditions
Artwork Input	Vector File, CAD Drawing or Dimensioned Graphic
Other Tooling Systems	TRUMPF Type and Murata Wiedemann Type Available
Customization	Graphic, Size, Depth, Direction and Machine Interface

How the Custom Logo Embossing Tool Works

A typical embossing cycle includes:

The sheet is positioned at the programmed coordinate
The upper working profile approaches the sheet
The lower die supports the corresponding area
The sheet is pressed between the matched male and female profiles
Material flows locally into the customized graphic geometry
The logo or symbol reaches the controlled embossing depth
The upper tool retracts
The permanently formed mark remains in the sheet

The final quality depends on:

Artwork design
Mark dimensions
Line width
Detail spacing
Embossing depth
Sheet material
Sheet thickness
Material hardness and ductility
Male and female profile matching
Forming clearance
Tool alignment
Machine stroke control
Surface-finish requirements

A production-equivalent sample sheet should be used during the initial trial.

Logo, Symbol and Identification Mark Options

The tool can be designed for more than a commercial logo.

Available custom profiles can include:

Company initials
Brand emblems
Product-family symbols
Up and down arrows
Left and right marks
Front and rear orientation marks
Grounding symbols
Electrical identification symbols
Inspection approval marks
Assembly-position symbols
Part-version indicators
Simple numbers or letters
Quality-control graphics
Customer-specified geometric marks

For variable serial numbers, changing dates, long text strings or frequently changing information, a fixed embossing tool may not be the most efficient solution. Interchangeable character tooling, dot-matrix marking, engraving or laser marking may be more suitable.

Raised and Recessed Embossing

The custom mark can be designed as:

A raised logo on the selected visible surface
A recessed logo on the selected visible surface
A raised symbol on the reverse side
A recessed identification mark on the reverse side

The customer should clearly specify:

Visible side of the finished component
Required raised or recessed effect
Marking from the top or bottom
Sheet-feeding orientation
Finished-part installation direction
Whether the opposite-side impression is acceptable

Changing between raised and recessed marking normally requires reversing or redesigning the male and female profile arrangement.

Embossing Depth

The embossing depth should create a clear and durable mark without unnecessarily distorting or damaging the sheet.

Depth selection depends on:

Sheet thickness
Material grade
Material hardness
Material elongation
Logo size
Line width
Graphic complexity
Surface coating
Visible-side requirements
Opposite-side appearance
Required mark durability

An embossing depth that is too shallow may produce an unclear mark.

Excessive depth may cause:

Material cracking
Local sheet thinning
Distortion around the mark
Excessive opposite-side projection
Loss of fine graphic detail
Surface damage
Difficulty releasing the workpiece
Excessive forming force

The appropriate depth should be established through design evaluation and trial embossing.

Artwork and Graphic Design Requirements

For accurate tooling manufacture, customers should preferably provide:

DXF
DWG
AI
EPS
PDF vector artwork
STEP or other suitable CAD formats
A fully dimensioned drawing

Raster images such as JPG or PNG may be used as visual references, but they may not contain sufficient geometric information for precision manufacturing.

The artwork should define:

Overall width
Overall height
Required orientation
Line thickness
Minimum gaps
Internal and external contours
Raised or recessed areas
Visible side
Marking depth
Position on the finished component

WYS Machinery can review customer artwork and recommend simplification where necessary.

Minimum Line Width and Detail Limitations

Very fine lines, sharp corners and narrow spaces may not reproduce clearly in sheet metal.

The minimum practical detail depends on:

Sheet thickness
Material type
Material hardness
Embossing depth
Tool material
Heat treatment
Mark size
Required service life
Machine accuracy
B Station capacity

Sharp internal corners may require small radii to improve tooling strength and material flow.

If the original logo contains very small text, thin decorative lines or complex gradients, a simplified manufacturing version may be recommended.

Fixed Embossing Tool Versus Engraving Tool

A fixed logo embossing tool and a programmable engraving tool serve different purposes.

Comparison	Fixed Logo Embossing Tool	Engraving Tool
Graphic	One Fixed Customized Profile	Programmable Paths
Marking Method	Matched-Profile Forming	Surface Displacement Along a Path
Typical Result	Raised or Recessed Logo	Fine Engraved Lines
Production Speed	Efficient for Repeated Identical Marks	Flexible for Changing Information
Best Application	Repeated Logo or Symbol	Text, Serial Numbers or Variable Graphics
Tool Change for New Design	New Working Profile Required	Program Change May Be Sufficient

The fixed embossing tool is generally more suitable for repeated production of the same logo or symbol.

Fixed Logo Tool Versus Character Marking Tool

A custom logo embossing tool produces one complete fixed design.

Character marking tools are more suitable when the customer needs:

Changing numbers
Changing dates
Variable part codes
Batch numbers
Different text combinations
Sequential identification

If the marking content remains unchanged, the fixed custom profile can provide efficient, consistent production.

Typical Applications

The B Station Thick Turret Custom Logo Embossing Tool is suitable for:

Electrical cabinets
Control panels
Switchgear enclosures
Electronic equipment housings
Communication cabinets
Server enclosures
Appliance panels
Elevator sheet metal components
Machinery covers
Automotive sheet metal parts
Metal furniture
Stainless steel equipment
Industrial nameplate components
General precision sheet metal fabrication

Typical marking purposes include:

Permanent brand identification
Product-series identification
Assembly orientation
Electrical-symbol marking
Quality-control identification
Part-version differentiation
Safety or warning symbols
Manufacturer identification
Decorative graphic marking
Traceability support using fixed symbols

Benefits for Batch Production

Producing the mark directly on a CNC punch press can provide:

Permanent identification
Repeatable graphic position
Consistent mark depth
No adhesive label
No ink consumption
No conventional punching chips
Reduced secondary stamping
Reduced workpiece transfer
Integration with punching and forming programs
High efficiency for repeated identical logos
Improved resistance to label loss
Reduced risk of printed marks fading
Consistent branding across production batches

The exact mark appearance still depends on the material, coating and forming conditions.

Surface Coatings and Decorative Sheets

Extra care is required when embossing:

Pre-painted sheet
Galvanized sheet
Brushed stainless steel
Polished stainless steel
Anodized aluminum
Coated aluminum
Decorative sheet
Protective-film-covered material

Embossing may stretch, compress or damage surface coatings around the logo.

Before production, customers should confirm:

Whether the protective film remains on the sheet
Whether minor coating deformation is acceptable
Whether the opposite-side impression is acceptable
Required visible-surface quality
Whether a sample trial is required

B Station Thick Turret Compatibility

The photographed tool uses a B Station thick turret structure.

Compatibility should be confirmed using:

Punch press manufacturer
Exact machine model
Thick turret tooling series
B Station dimensions
Fixed or indexing station
Tool-height system
Guide and retaining structure
Lower-die dimensions
Existing tooling sample or drawing

The B Station designation alone does not guarantee compatibility with every machine.

TRUMPF Type Logo and Symbol Embossing Tools

WYS Machinery can manufacture compatible custom logo, symbol and marking tools for TRUMPF punching and punch-laser machines.

Available TRUMPF Type solutions can include:

Fixed logo embossing tools
Individual symbol embossing tools
Raised or recessed marking
Top-side or bottom-side marking
Custom identification graphics
Machine-specific punch and die structures
Replaceable working components where structurally suitable

TRUMPF Type tooling uses a different cartridge and mounting system from B Station thick turret tooling. The photographed thick turret tool cannot be installed directly in a TRUMPF tooling system.

Customers should provide the exact machine model, tooling size, artwork, sheet material and thickness.

Murata Wiedemann Type Logo and Symbol Tools

WYS Machinery can also manufacture compatible custom logo and symbol embossing tools for Murata Wiedemann punch press systems.

Tooling design is determined according to:

Murata Wiedemann machine model
Applicable tooling series
Required station
Guide and holder structure
Top or bottom marking
Logo or symbol dimensions
Sheet material and thickness
Required marking depth
Existing tooling sample or drawing

Murata Wiedemann Type tooling is not interchangeable with thick turret or TRUMPF Type tooling.

Customers can provide machine information, authorized artwork and finished-part requirements for compatibility confirmation and free design support.

Other Custom Marking Tools

In addition to fixed logo embossing tools, WYS Machinery can manufacture:

Center point tools
Cross-point marking tools
Character marking tools
Number and letter embossing tools
Logo engraving tools
Sheet-scribing tools
V-line marking tools
Identification-symbol tools
Part-orientation marking tools
Custom shallow embossing tools
Other special marking and forming tools

Solutions can be developed for thick turret, thin turret, TRUMPF Type, Murata Wiedemann Type and other compatible punching systems.

Manufacturing Quality

The B Station Custom Logo Embossing Tool is manufactured through controlled machining, precision engraving or EDM, heat treatment, grinding and assembly processes.

Quality inspection can include:

B Station dimensional inspection
Artwork-profile comparison
Overall logo-size verification
Line-width measurement
Male and female profile matching
Embossing-clearance inspection
Tool concentricity checking
Tool-height inspection
Surface-finish inspection
Tool-hardness testing
Marking-direction confirmation
Trial embossing
Finished-mark inspection

Accurate matching of the upper and lower profiles helps create a clear and consistent mark while reducing cracking and surrounding sheet distortion.

Installation and Trial Embossing

Before installation:

Confirm the exact punch press model
Verify the B Station tooling structure
Check the upper tool and lower die as a matching set
Confirm the correct logo orientation
Confirm the visible side
Verify raised or recessed marking
Confirm sheet material and thickness
Clean the tool and machine station
Inspect all graphic details
Confirm upper and lower tool alignment
Check the programmed stroke and tool height

During trial embossing:

Use production-equivalent sheet material
Begin with a conservative forming depth
Increase depth gradually
Inspect the mark from both sides
Check clarity of fine details
Inspect for cracking and coating damage
Measure the embossing depth
Confirm the logo orientation
Check surrounding sheet flatness
Save the verified CNC and machine settings

Maintenance

Regular maintenance should include:

Cleaning the male and female graphic profiles
Removing metal particles and residue
Inspecting fine lines and corners
Checking for localized chipping
Monitoring profile wear
Inspecting upper and lower tool alignment
Applying suitable lubrication where required
Protecting graphic faces during storage
Avoiding impact on the precision working profiles
Replacing or repairing worn components where technically possible

The working profiles should never be cleaned using a method that damages fine logo details.

Intellectual Property and Artwork Authorization

Customers should only submit logos, trademarks, symbols or graphics that they own or are authorized to use.

By submitting custom artwork for tooling manufacture, the customer is responsible for confirming that:

They own the relevant intellectual-property rights
They have permission to reproduce the mark
The requested design does not infringe third-party rights
Any required brand authorization has been obtained
The artwork is approved for manufacturing use

WYS Machinery manufactures the tool according to customer-supplied and customer-authorized designs.

Ordering Information Required

Required Information	Purpose
Punch Press Manufacturer	Identifies the tooling system
Exact Machine Model	Confirms compatibility
Tooling System	Selects Thick Turret, TRUMPF Type or Murata Wiedemann Type
Station or Tool Size	Confirms installation capacity
Authorized Logo or Symbol File	Defines the custom profile
Overall Mark Width and Height	Defines the finished size
Required Line Width	Supports manufacturability evaluation
Embossing Depth	Defines the marking effect
Raised or Recessed Mark	Confirms profile arrangement
Visible Side	Confirms orientation
Top or Bottom Marking	Determines tooling structure
Sheet Material	Supports forming design
Sheet Thickness	Determines matching clearance
Surface Coating	Supports mark-quality evaluation
Finished-Part Drawing	Confirms mark position and direction
Existing Tool Sample or Drawing	Supports compatible manufacturing
Required Quantity	Confirms production scope

Standard and Custom Logo Embossing Tools

WYS Machinery supplies custom sheet metal embossing tools for logos, symbols and fixed identification marks.

Available options include:

B Station thick turret logo embossing tools
Other thick turret station configurations
Thin turret custom marking tools
TRUMPF Type logo embossing tools
Murata Wiedemann Type logo embossing tools
Raised logos
Recessed logos
Individual symbols
Orientation marks
Electrical and safety symbols
Simple letters and numbers
Custom graphic marks
Top or bottom marking
Complete upper and lower tool sets
Replacement working components
Tooling manufactured from authorized artwork
Tooling developed from finished-part drawings
OEM and private-label manufacturing

Customers can send the machine model, authorized artwork, required mark dimensions, sheet material and thickness. Our engineering team can evaluate graphic manufacturability, station capacity and forming requirements and provide free tooling design support.

Product Identification and Frequently Asked Questions

What is the correct English name for Logo模具?

For the pictured matched-profile tool, the recommended name is Custom Logo Embossing Tool.

Can the tool produce marks other than a company logo?

Yes. It can produce symbols, arrows, orientation marks, identification graphics, inspection marks and other fixed profiles.

Does the tool cut through the sheet?

No. It normally forms the mark by displacing the material without producing a through-hole.

Does it produce a slug?

No conventional punching slug is produced.

Can it produce both raised and recessed logos?

Yes. The tool can be designed according to the required visible-side effect.

Is this the same as an engraving tool?

No. A fixed embossing tool produces one matched-profile logo or symbol in a stroke. An engraving tool normally follows a programmed path and is more flexible for changing graphics or text.

Can variable serial numbers be produced?

A fixed logo tool is not ideal for frequently changing serial numbers. Character tooling, dot-matrix, engraving or laser marking may be more suitable.

Can the logo size be customized?

Yes, provided the design remains within the station, material and forming-force limits.

Can a highly detailed logo be reproduced exactly?

It depends on the mark size, line width, sheet thickness and material. Very fine details may need to be simplified.

What artwork format should be provided?

DXF, DWG, AI, EPS, vector PDF or a dimensioned CAD drawing is preferred.

Can the tool mark coated or painted sheet?

It may be possible, but trial embossing is recommended because forming can stretch or damage the coating.

Can WYS Machinery manufacture TRUMPF Type logo tools?

Yes. Compatible TRUMPF Type logo and symbol embossing tools can be manufactured. They are not shown in the current photographs.

Can WYS Machinery manufacture Murata Wiedemann Type logo tools?

Yes. Compatible Murata Wiedemann Type logo and symbol tools can be developed after confirming the machine and tooling information.

Are these original TRUMPF or Murata Wiedemann tools?

No. They are compatible replacement tools manufactured by WYS Machinery. Brand references describe compatibility and do not imply original manufacture or official affiliation.

Custom Punch Tooling

B Station Thick Turret Custom Logo Embossing Tool

A Station Thick Turret Center Point Marking Tool

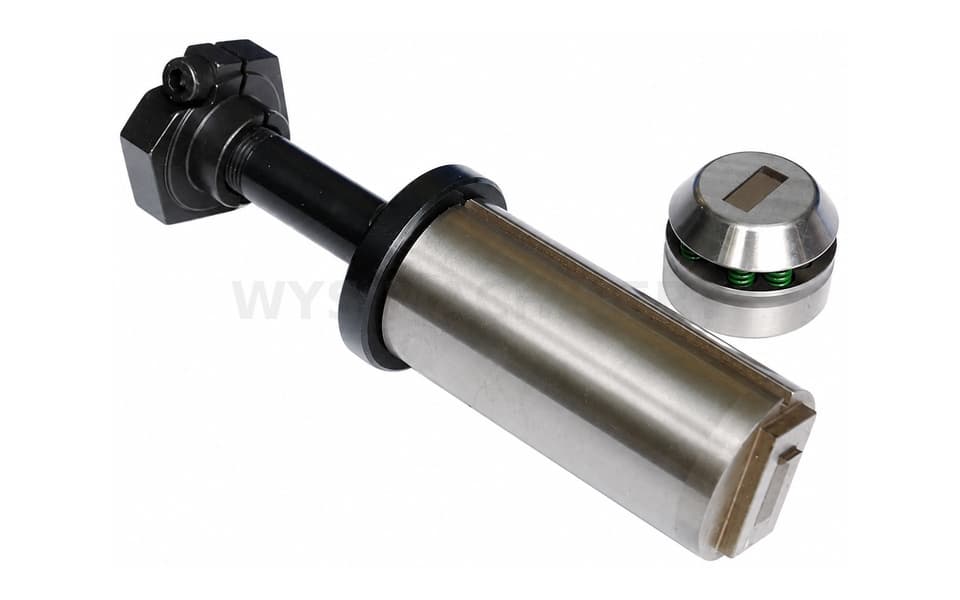

B Station Thick Turret Lance and Form Tool

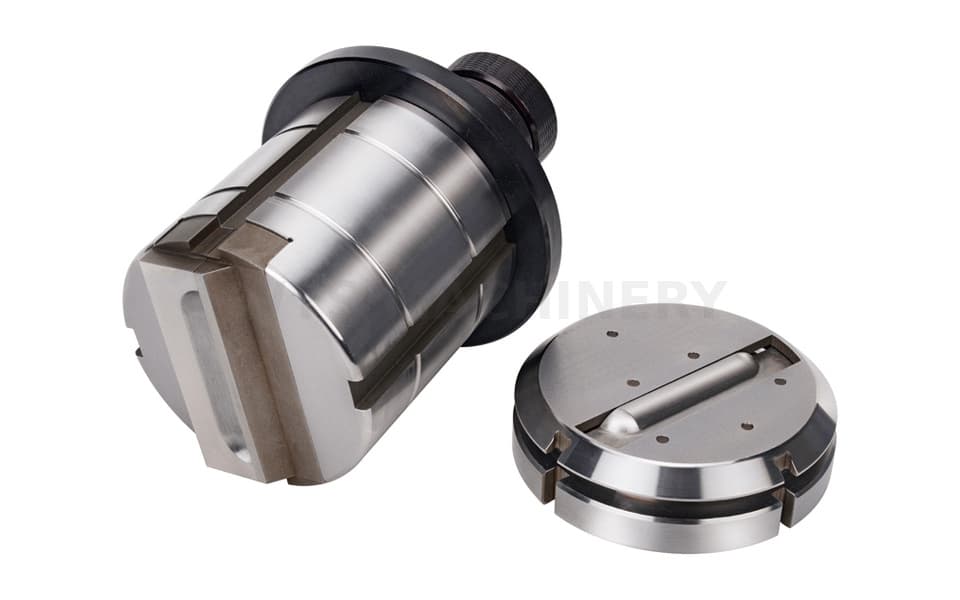

D Station Thick Turret Louver Forming Tool
