WILA Type V16 30° Lower Die for 2mm Sheet – H55mm, R1.5

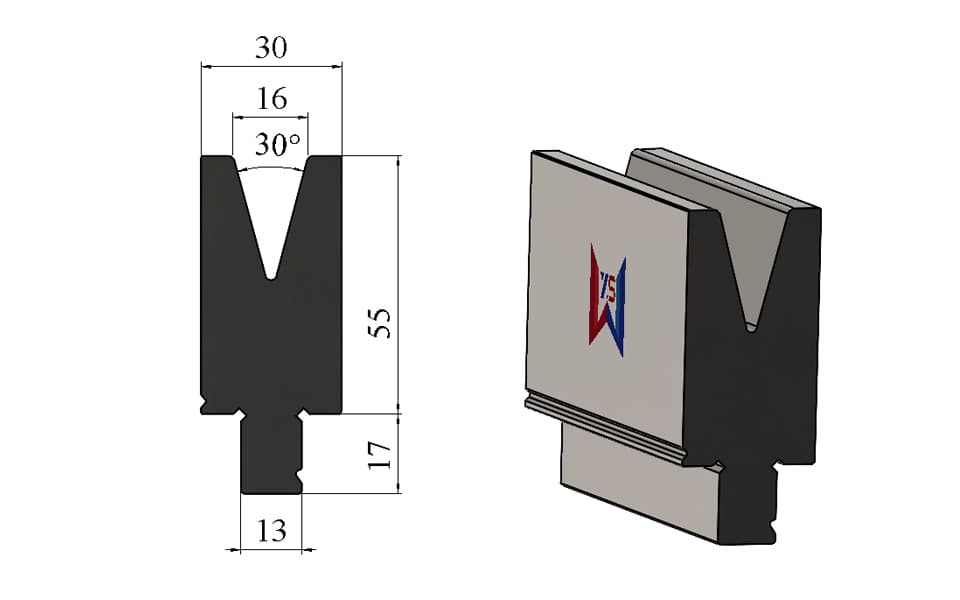

Developed for bending sheet metal around 2 mm thick, this WILA Type V16 lower die combines a 16 mm V-opening with a deep 30° groove. The specification follows a widely used air-bending starting point in which the V-opening is approximately eight times the material thickness:

2 mm sheet thickness × 8 = 16 mm V-opening

This relationship makes the V16 die a practical choice for many 2 mm mild-steel components. It offers an effective balance between forming force, minimum flange requirement, natural inside bend radius and material support during the bending cycle.

The deep 30° groove allows the sheet to travel beyond a conventional right-angle position when paired with a suitable acute-angle punch. It can therefore be used to manufacture finished acute profiles or to create the preliminary fold required before a hemming or flattening operation.

Compared with the narrower V6, V8 and V12 dies in the same product range, the V16 version provides more room for material movement and generally produces a larger natural inside radius. Its wider 30 mm die body and R1.5 mm shoulders create a more substantial working profile suited to the forming behavior of approximately 2 mm sheet.

The tool has a 55 mm working height and a 17 mm lower mounting section, giving it an approximate overall height of 72 mm. Its 13 mm bottom tang is designed for compatible WILA Type lower-tool clamping systems.

With a maximum rated load of 80 ton/m, 42CrMo alloy-steel construction and HRC54±2 working hardness, the die is suitable for accurate and repeatable sheet metal production.

Key Features

• Developed for bending approximately 2 mm sheet metal
• 16 mm V-opening based on a common 8× thickness guideline
• Deep 30° groove for acute bending and edge pre-forming
• Suitable for the first stage of hemming and flattening processes
• Wider groove promotes smooth material flow
• 30 mm die body provides stable material support
• R1.5 mm shoulders reduce sharp contact at the die edges
• 55 mm working height with an approximate 72 mm overall height
• Maximum rated load of 80 ton/m
• Manufactured from 42CrMo alloy tool steel
• Working surfaces hardened to HRC54±2
• Precision-machined for consistent bend angles
• Suitable for continuous or segmented tool configurations
• Dimensions and working profiles can be customized

Technical Specifications

Designed Around 2mm Sheet Metal Bending

A V16 opening is commonly selected as an initial option for air bending 2 mm mild steel because the opening is eight times the nominal sheet thickness. This ratio can provide:

• A practical balance between bending force and bend radius
• Sufficient clearance for material movement
• Stable support on both die shoulders
• Reduced localized pressure compared with a narrower opening
• A suitable starting geometry for acute pre-bending

The final inside radius produced by air bending is influenced primarily by the V-opening and material characteristics rather than being an exact copy of the punch-tip radius. Material grade, tensile strength, grain direction and springback must therefore be considered when specifying the finished component.

For stainless steel, aluminium or high-strength steel, a different V-opening may be required even when the nominal thickness remains 2 mm.

Typical Applications

This WILA Type V16 30° die is suitable for:

• Acute-angle bending of approximately 2 mm sheet
• Pre-forming edges before flattening
• Producing open, closed or teardrop hems
• Creating folded safety edges on panels
• Multi-stage bending of doors and enclosures
• Manufacturing electrical cabinets and switchgear components
• Forming machinery guards and equipment covers
• Producing HVAC panels and duct components
• Bending appliance housings and metal-furniture parts
• Mild steel, stainless steel and aluminium fabrication
• Medium- and high-volume press brake production
• CNC hydraulic and servo-electric press brakes

When used for hemming, this die creates the initial acute fold. The final edge must be completed with a suitable flattening die, hemming table or dedicated hemming tool.

The stated 2 mm application is a general selection reference. Actual bending capacity depends on the material, bend length, upper-punch profile, required radius and press brake tonnage.

V16 Position Within the Acute-Die Range

This specification-based product structure helps customers and search engines distinguish the actual purpose of each 30° die instead of treating the pages as duplicate variations.

Product Details & Manufacturing Quality

The die is manufactured from selected 42CrMo alloy steel, providing the toughness and load-bearing stability required for repeated forming. Its working region is hardened to HRC54±2 to improve resistance to shoulder wear, indentation and dimensional change.

The V16 groove and 30° working angle are precision machined along the tool length. Consistent groove geometry supports accurate punch-to-die alignment and helps segmented sections form a continuous, uniform bend line.

The R1.5 mm shoulders provide a smoother transition as the 2 mm sheet moves into the groove. This larger shoulder radius distinguishes the tool from the smaller V-opening models and is better matched to its wider working profile.

The die can be supplied as a continuous tool for long panels or as a segmented set for boxes, cabinets, covers and components with interfering flanges.

Standard & Custom WILA Type Press Brake Tooling

WYS Machinery supplies standard and customized WILA Type lower dies, acute punches, straight punches, gooseneck punches, hemming tools, flattening dies and press brake adapters.

Customers can provide their workpiece drawing, material grade, thickness, bending length and required final profile. Our technical team offers a free tooling design service and recommends an appropriate punch radius, V-opening, tooling load and forming sequence.

Customization options include:

• V-opening and groove angle
• Working height and die body width
• Shoulder radius and groove depth
• Lower mounting and clamping profile
• Continuous or segmented tool lengths
• Customized section combinations
• Acute-bending and pre-hemming tool sets
• Flattening and folded-edge solutions
• Blackened or coated surfaces
• Tooling for special materials and profiles

This product is manufactured as WILA Type compatible press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
