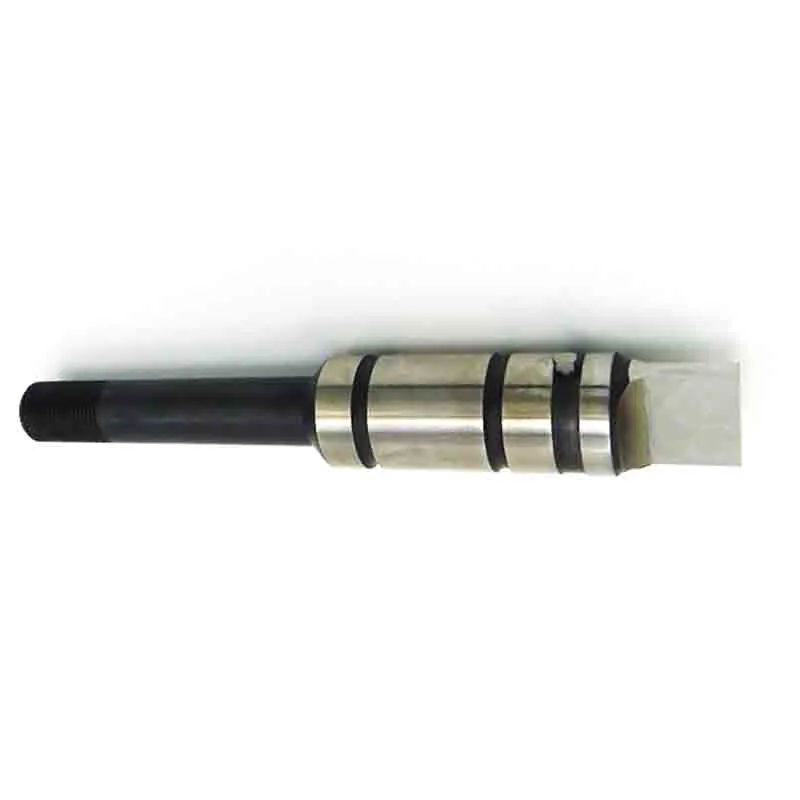

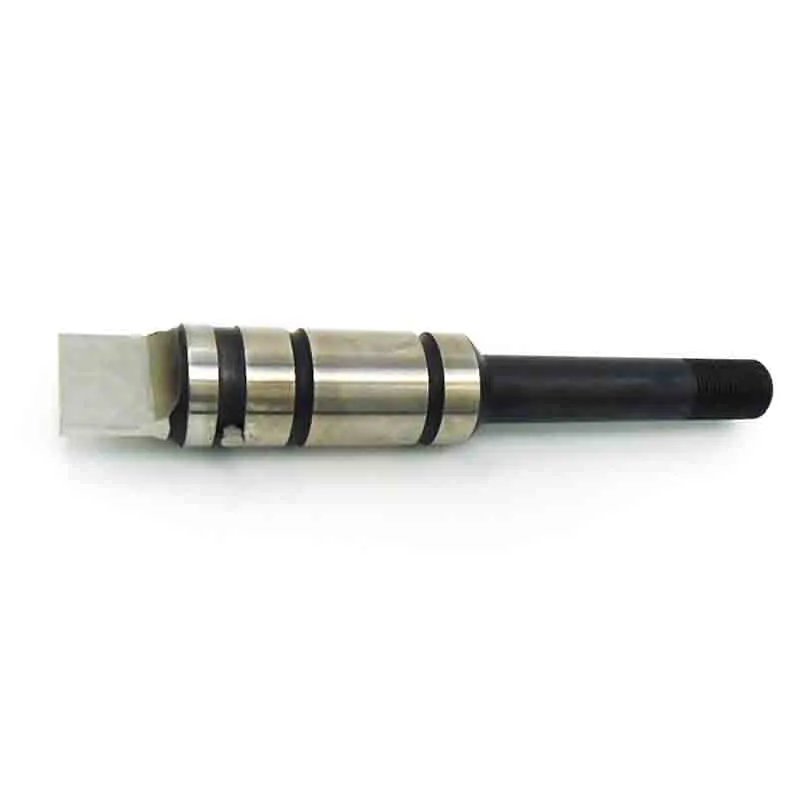

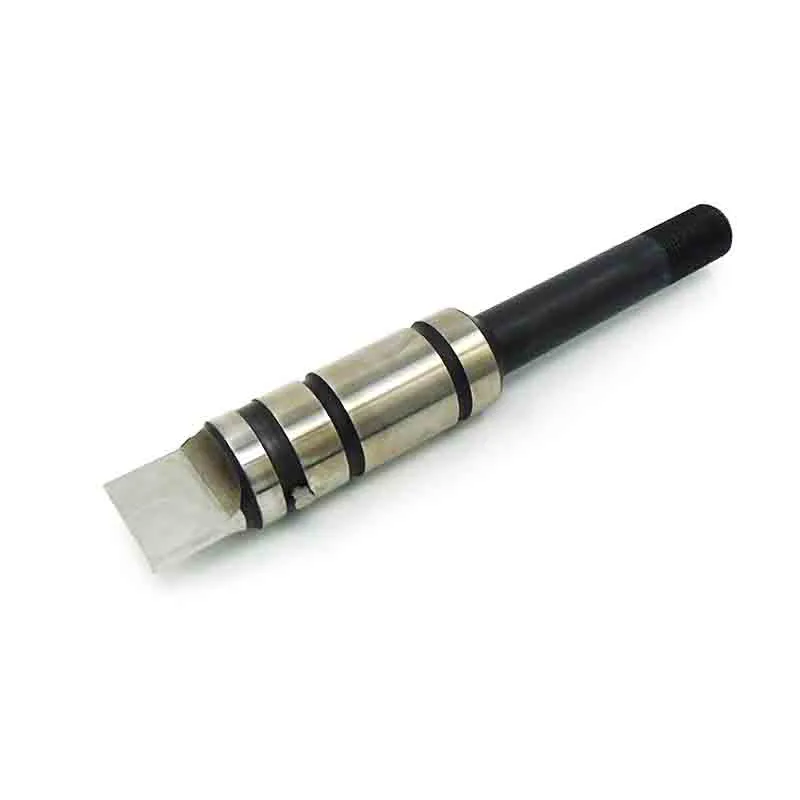

Thick Turret
Material: Punch-body HHS, Die DC53
Heat treatment: HRC 60°- 62°
Hits before regrinding (for stainless steel): About 300000 hits
Hits before regrinding (for mild steel): About 500000 hits
Tool life (round): About 800000 hits
Tool life (shape): About 600000-700000 hits
Option: Coating with TICN or TIN
DESCRIPTION
Interchange with popular brand tooling.
Square guide with 0° and 135°, other shape with 0° and 90.°
Punch Max. thickness: 6.3mm(mild steel).
Our unique ability to provide our customers with virtually any complex and customized tooling enables us to recommend to our customers with the most cost-effective solu-tion to their sheet metal processing.
